Tunnel Conveyor Belt UVLED Curing Machine Drying Equipment

  • Tunnel Conveyor Belt UVLED Curing Machine Drying Equipment
  • Tunnel Conveyor Belt UVLED Curing Machine Drying Equipment
  • Tunnel Conveyor Belt UVLED Curing Machine Drying Equipment
  • Tunnel Conveyor Belt UVLED Curing Machine Drying Equipment

Tunnel Conveyor Belt UVLED Curing Machine Drying Equipment

    Packaging: wooden case
    Productivity: 30 set
    Brand: HY
    Transportation: Ocean
    Place of Origin: CHINA
    Supply Ability: 30set
    Certificate: CE
    Port: shenzhen,guangzhou

Product Description

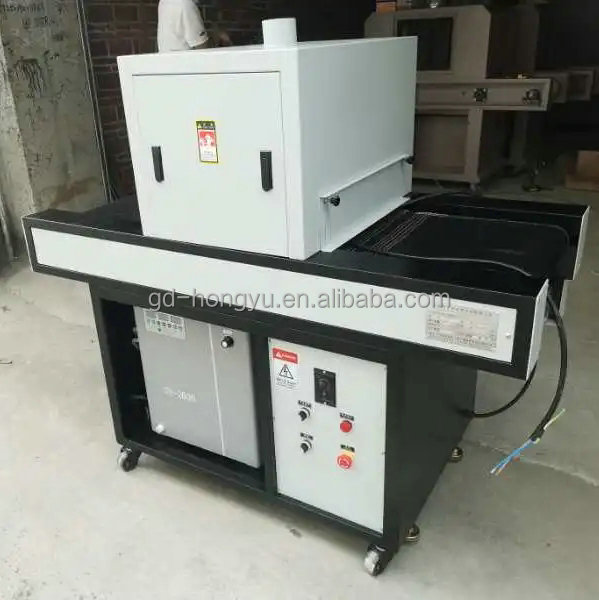

Conveyor Belt UV Curing Machine Drying Line LED Dryer

It is apply to the special effects such as wrinkle, frosted, refraction gem crystal and convex oil on the bullion paperboard, metal, glass, plastic, and also the UV curing of the offset printing ink on the offset press production, screen printing, glue coating drying.



Specification
Machine Size:
750*1500*1200MM
Irradiate Size;
200*100mm/cm2
Power:
AC220V/110V
Spectrum Range:
365NM
Belt Width:
300MM
Speed:
4m/min

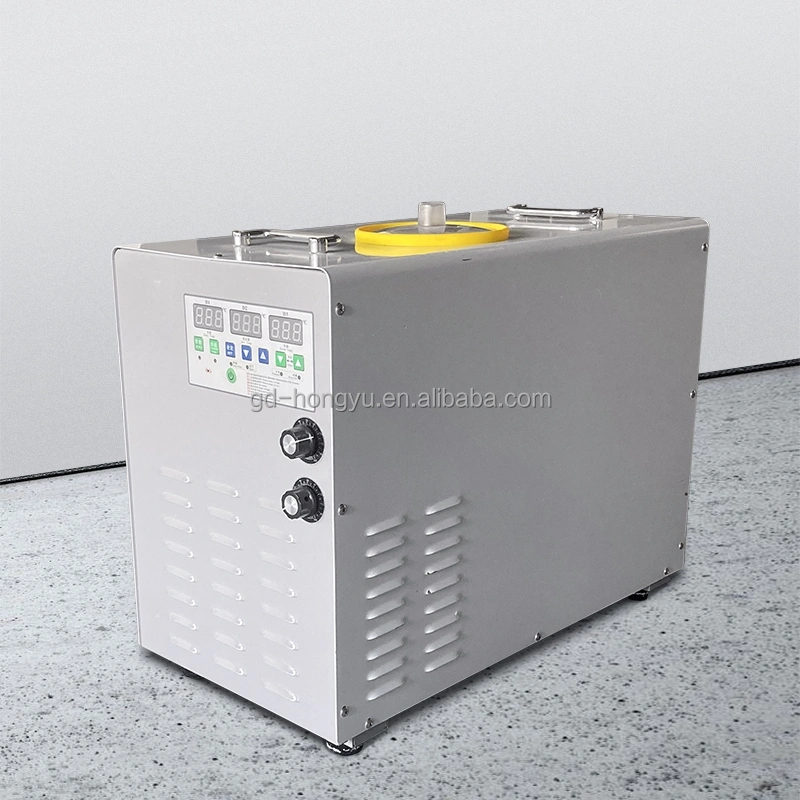

Dissipation Mode
Water Cooling
Power:
1200W
Energy Uniformity:
>90%
Furnace Temperature:
>50
Net Weight:
90KG
Belt Material:
TF







Machine maintenance:

1. Clean the dust on the surface and keep the body clean.

2. When starting the machine, check whether the fan and motor operate normally and whether there is any abnormal sound. If there is any abnormal sound, shut down the machine immediately and inform the maintenance worker for maintenance.

3. After turning on the lamp, check whether the UV lamp has been turned on. If it is found that the UV lamp has not been turned on, inform the maintenance worker for maintenance. Monthly maintenance of UV curing machine

1. Check whether the vent is blocked and clean up the dust.

2. Check whether the lamp current is normal and whether the circuit is aging.

3. Check whether the fan and motor operate normally, and whether the motor speed regulation can meet the working requirements of UV curing machine.

4. Add oil to the drive chain and sprocket.

5. Whether the light intensity of UV lamp can meet the working standard, and whether the lamp is aging.

6. Clean the dust inside.

Half year maintenance of UV curing machine

1. Check whether the circuit and switch are normal.

2. Refuel the motor gearbox.

3. The insulation of transformer shall not be less than 5 megohm. If not, the transformer must be dried again.

4. Wipe the reflector with soft rag and alcohol.

5. Whether the transmission shaft and sprocket are loose, and whether the two sprockets are vertical.

6. Whether the tightness of mesh belt is appropriate
